FUNCTIONALITY AND TIMING
LIVE INSERTION
The timing waveforms associated with the live insertion of a
plug-in board using the ADM1073 are shown in Figure 36. The
long connector pins are the first to make connection, and the
GND V
EE
potential climbs to 48 V. As this voltage is applied,
the voltage at the V
IN
pin ramps to a constant 12.3 V and is held
at this level with the shunt resistor and external resistor
combination at the V
IN
pin. In this case, the connection pins are
staggered so that the R1/R2 and R3/R4 resistor dividers are the
last to connect to the backplane. This means that VUV and VOV
begin to ramp after the other pins connect. Note that staggered
connector pins are optional, because an internal time filter is
included on the UV pin.
When V
UV
crosses the undervoltage rising threshold, it is now
inside the operating voltage window and the 48 V supply must
be applied to the load. The SPLYGD
output is asserted and after
a time delay, tPOR, the ADM1073 begins to ramp up the gate
drive. When the voltage on the SENSE pin reaches 100 mV (the
analog current limit level), the gate drive is held constant. When
the board capacitance is fully charged, the sense voltage begins
to drop below the analog current limit voltage and the gate
voltage is free to ramp up further. The gate voltage eventually
climbs to its maximum value of 12.3 V and the
PWRGD
output
is asserted. Figure 37 shows some typical startup waveforms.
t
POR
V
LKO
V
UVR
48V RTN VEE
V
IN
V
UV
GATE
SENSE
V
OUT
SPLYGD
PWRGD

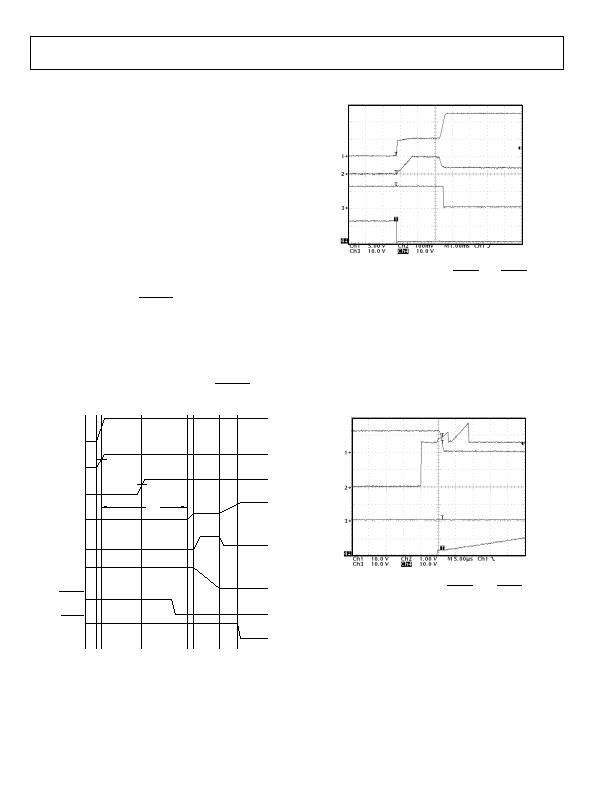

Figure 36. Timing Waveforms Associated with a Live Insertion Event
Figure 37. Typical Startup Sequence
(Ch1 = GATE; Ch2 = SENSE; Ch3 =
PWRGD
; Ch4 =
SPLYGD
)
OVERVOLTAGE AND UNDERVOLTAGE FAULTS
The waveforms for an overvoltage glitch are shown in Figure 38.
When V
OV
glitches above the overvoltage threshold of 1.93 V, an
overvoltage condition is detected and the GATE voltage is
pulled low. V
OV
begins to drop back toward the operating
voltage window, and the GATE drive is restored when the
overvoltage falling threshold (1.93 V minus preset OV
hysteresis level) is reached. Figure 38 illustrates the ADM1073s
reactions to an overvoltage condition.
Figure 38. Timing Waveforms Associated with an Overvoltage Fault
(Ch1 = GATE; Ch2 = OV; Ch3 = PWRGD
; Ch 4 = SPLYGD
)
